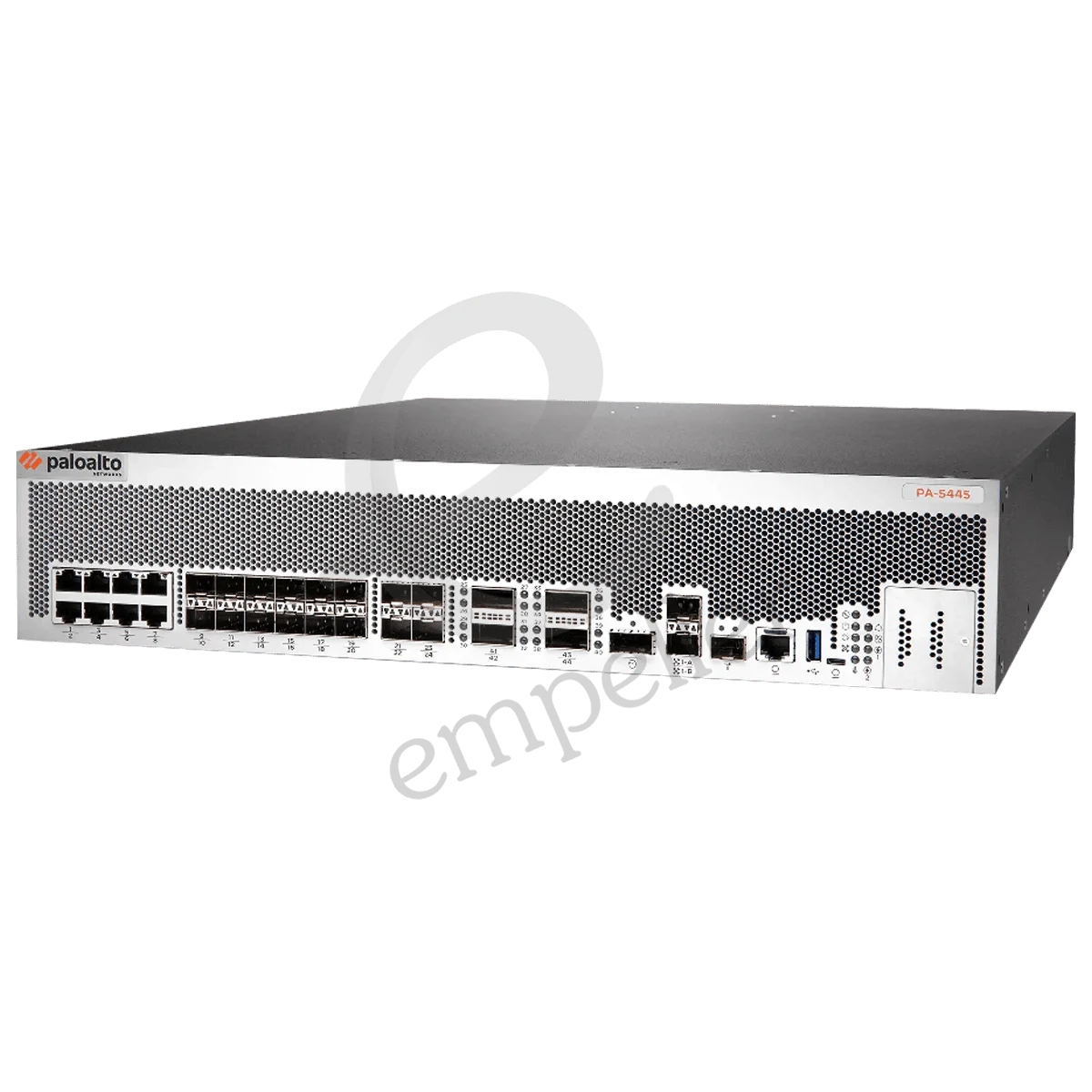

Palo Alto Networks PA-5400 Series PA-5445

Palo Alto Networks PA-5400 Series PA-5445

In Stock
  • Product DescriptionPalo Alto Networks PA-5400 Series PA-5445 – security appliance
  •  Device TypeSecurity appliance
  •  Form FactorFront to back airflow rack-mountable – 2U
  •  Hard Drive480 GB x 2
  •  Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet, 25 Gigabit Ethernet
  •  PerformanceFirewall throughput (appmix): 90 Gbps ¦ Threat prevention throughput (appmix): 76 Gbps ¦ VPN throughput (IPSec): 64 Gbps
  •  CapacityMaximum concurrent sessions: 48000000 ¦ New sessions per second: 449000 ¦ Virtual systems (base): 25 ¦ Virtual systems (maximum): 225 ¦ VLAN tags per device: 4094 ¦ VLAN tags per interface: 4094
  •  PowerAC 100-240 V (50/60 Hz)
  •  Power RedundancyYes
  •  Pricing TypeNot for resale
  •  Dimensions (WxDxH)17.3 in x 22.5 in x 3.4 in
  •  Weight35.01 lbs
Add to wishlist
Categories: ,

Description

Networking
Form Factor Rack-mountable
Airflow Direction Front to back airflow
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet, 25 Gigabit Ethernet
Network / Transport Protocol PPPoE, DHCP
Routing Protocol RIP, BGP, IGMPv2, IGMP, OSPFv2, PIM-SM, static IP routing, IGMPv3, OSPFv3, PIM-SSM, policy-based routing (PBR), Bidirectional Forwarding Detection (BFD)
Performance Firewall throughput (appmix): 90 Gbps ¦ Threat prevention throughput (appmix): 76 Gbps ¦ VPN throughput (IPSec): 64 Gbps
Capacity Maximum concurrent sessions: 48000000 ¦ New sessions per second: 449000 ¦ Virtual systems (base): 25 ¦ Virtual systems (maximum): 225 ¦ VLAN tags per device: 4094 ¦ VLAN tags per interface: 4094
Status Indicators Port transmission speed, power, temperature, status, alarm, link/activity, fan, HA, service, PSU
Features NAT support, High Availability, URL filtering, anti-malware protection, web threat protection, Pre-Shared Key (PSK), 5G Security, GTP Security, SCTP Security, ML-Powered Next-Generation Firewall, Stateless Address Autoconfiguration (SLAAC), jitter/ loss/ latency measurement, initial path selection (PBF), Network Prefix Translation (NPT) 6
Encryption Algorithm MD5, SSL, SHA-1, 128-bit AES, 192-bit AES, 256-bit AES, IKEv2, IKEv1, SHA-256, SHA-384, SHA-512, 3DES
Compliant Standards IEEE 802.1Q, IEEE 802.3ad (LACP)
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 122 °F
Humidity Range Operating 10 – 90%
General
Device Type Security appliance
Height (Rack Units) 2U
Width 17.3 in
Depth 22.5 in
Height 3.4 in
Weight 35.01 lbs
Processor / Memory / Storage
Hard Drive SSD 480 GB x 2
Expansion / Connectivity
Interfaces 8 x 1/2.5/5/10GBase-T – RJ-45 ¦ 12 x 1 Gigabit Ethernet/10Gb Ethernet – SFP/SFP+ ¦ 4 x 1Gb Ethernet/10Gb Ethernet/25Gb Ethernet – SFP/SFP+/SFP28 ¦ 4 x 40Gb Ethernet/100Gb Ethernet – QSFP+/QSFP28 ¦ 1 x 1 Gigabit Ethernet/10Gb Ethernet (management) – SFP/SFP+ ¦ 2 x 1Gb Ethernet/10Gb Ethernet (High Availability) – SFP/SFP+ ¦ 1 x 40Gb Ethernet (High Availability) – QSFP+ ¦ 1 x console – RJ-45 ¦ 1 x console – micro-USB ¦ 1 x USB – Type A
Power
Power Device Internal power supply – hot-plug
Installed Qty 2
Max Supported Qty 2
Power Redundancy Yes
Voltage Required AC 100-240 V (50/60 Hz)
Power Consumption Operational 630 Watt
Power Provided 1200 Watt
Software / System Requirements
OS Provided PAN-OS
