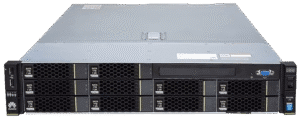

Top view of Huawei RH2288H V3 Xeon Rack Server

Huawei RH2288H V3 Xeon Rack Server

In Stock
  • High-density Computing Capabilities
  • Reliable and Stable Operation
  • Easy Management and Maintenance
  • Future-ready Technology Integration
  • Max RAM Capacity: 1 TB
  • Max Storage Capacity: 96TB
  • Remote Installation Assistance
  • Fast And Secure Delivery
  • Lowest Price than Competitor’s
In Stock
Add to wishlist
Categories: , ,

Description

Huawei RH2288H v3 rack server delivers high-performance, large storage capacity and scalability in 2U space. This server is ideal for Internet, big data, cloud computing, high-performance computing, telecom service and mission-critical applications. Huawei RH2288H V3 Rack Server supports two Intel Xeon E5-2600 V3 series processors, 24 DDR4 DIMMS, 9 PCIe slots and optional Huawei high-performance PCIe SSDs and dual-slot GPUs. With the Industry-leading RAID technologies and flexible storage expansion, Huawei RH2288H V3 Rack Server can supports from 8 to 28 hard disks and employs the latest 12Gbits/s SAS technology to support massive data transmission. This RH2288H V3 Rack Server offers 4 configurations, including 8-disk configuration, 10-disk configuration, 12-disk configuration and 25-disk configuration.

Product Huawei RH2288H V3 Rack Server
Processors Intel® Xeon® E5-2600 v3/v4 series processors
Memory 24 DDR4 RDIMMs/LRDIMMs
Internal Storage Hard disk configurations:

· 8 x 2.5-inch front SAS/SATA HDDs or SSDs
· 10 x 3.5-inch front SATA HDDs
· 12 x 3.5-inch front SAS/SATA HDDs (4 NVMe SSDs supported by the NVMe model) and 2 rear hard disk modules, each module providing 2 x 2.5-inch SAS/SATA HDDs or SSDs, or 2 x 3.5-inch SAS/SATA HDDs
· 25 x 2.5-inch front SAS/SATA HDDs or SSDs and 2 or 3 x 2.5-inch rear SAS/SATA HDDs or SSDs
Built-in flash memory:

· 2 mini-SSD cards (SATADOMs)
· 2 SD cards
RAID · RAID 0, 1, 10, 5, 50, 6, or 60
· Configured with a supercapacitor for power-off protection for the cache (optional)
· RAID state transition, configuration memory, self-diagnosis, and web-based remote configuration
LOM Network Ports 2 GE or 4 GE ports, or 2 x 10 GE ports, or 2 x 56 Gbit/s FDR InfiniBand ports
PCIe Expansion Up to 9 PCIe 3.0 slots
Fan Modules Hot-swappable fan modules in N+1 redundancy mode
Power Supply Units 2 hot-swappable PSUs in 1+1 redundancy mode
Management · Uses the Huawei Hi1710 management chip and independent ports
· Supports standard management interfaces, such as SNMP and IPMI; provides GUI, remote KVM, virtual media, SOL, Predictive Failure Analysis (PFA), intelligent power supply, remote control, and hardware monitoring Incorporates a touchscreen LCD panel for fault diagnosis
· Supports Huawei eSight management software and integration with third-party management systems, such as VMware vCenter, Microsoft System Center, and Nagios
Operating Temperature 5°C to 45°C (41°F to 113°F), ASHRAE Class A3 and A4 compliant
Dimensions (W x D x H) RH2288H V3 with 3.5-inch hard disks: 447 mm x 748 mm x 86.1 mm

RH2288H V3 with 2.5-inch hard disks: 447 mm x 708 mm x 86.1 mm

Empeller Systems is a leading IT solutions provider based in Dubai, specializing in high-performance servers, workstations, laptops and enterprise infrastructure. We offer a wide range of cutting-edge products from globally recognized brands such as Lenovo, Dell, HPE, and Huawei, tailored to meet the needs of businesses across various industries. At Empeller Systems, we combine expert technical knowledge with a customer-first approach, ensuring every client receives the right technology to drive growth, efficiency, and long-term success. Visit our Instagram page for more details.

Huawei new-generation RH2288H v3 rack server delivers high-performance, large storage capacity and scalability in 2U space. This server is ideal for Internet, big
data, cloud computing, high-performance computing, telecom service and mission-critical applications. Huawei RH2288H V3 Rack Server supports two Intel Xeon E5-
2600 V3 series processors, 24 DDR4 DIMMS, 9 PCIe slots and optional Huawei high-performance PCIe SSDs and dual-slot GPUs. With the Industry-leading RAID
technologies and flexible storage expansion, Huawei RH2288H V3 Rack Server can supports from 8 to 28 hard disks and employs the latest 12Gbits/s SAS
technology to support massive data transmission. This RH2288H V3 Rack Server offers 4 configurations, including 8-disk configuration, 10-disk configuration, 12-disk
configuration and 25-disk configuration.
