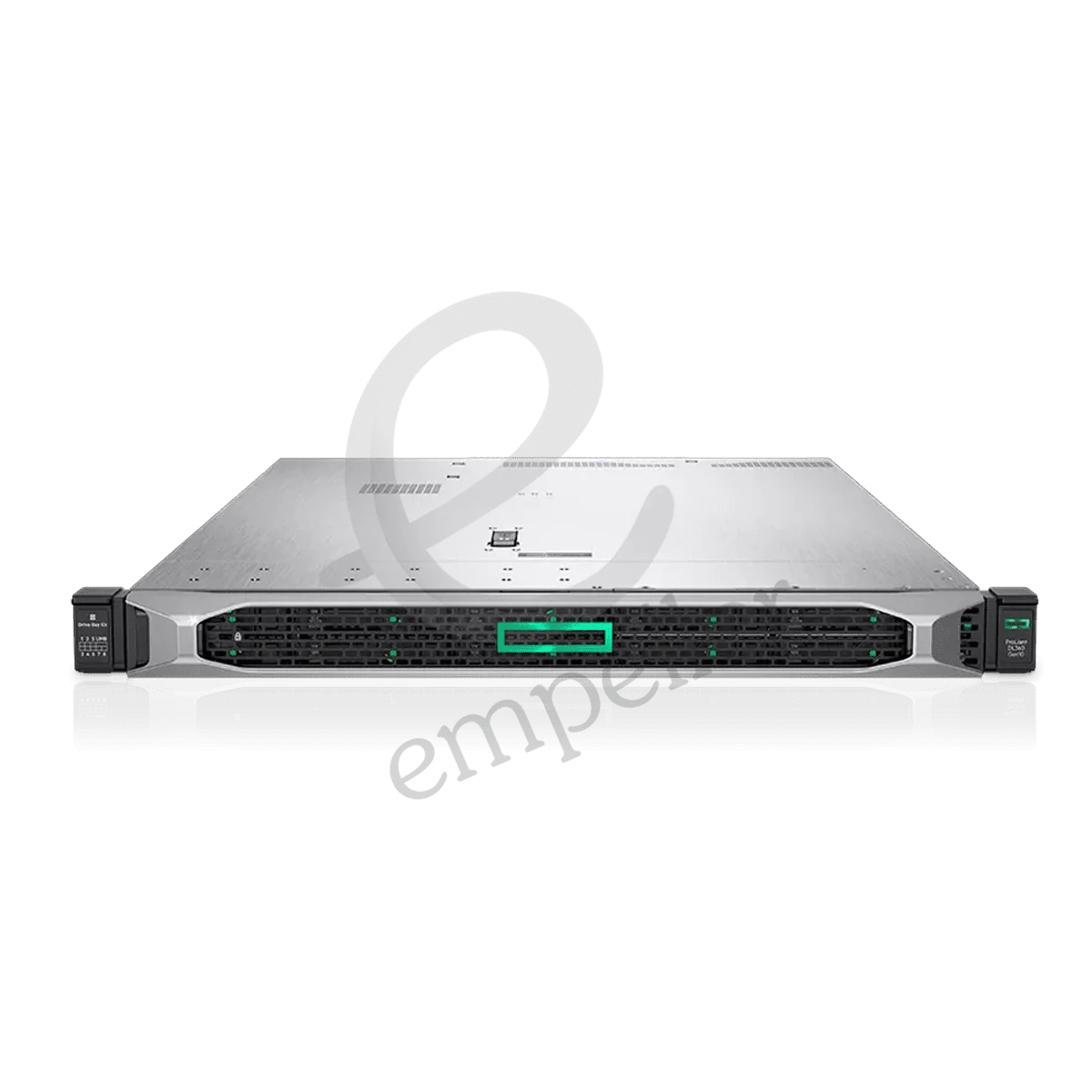

HPE ProLiant DL360 Gen10 Plus Rack Server

Processor of HPE ProLiant DL360 Gen10 Plus server

Processor type Intel®

Processor family Intel® Xeon® Scalable 8300 series
Intel® Xeon® Scalable 6300 series

Processor number 1 or 2

Processor core available 8 to 40 core, depending on processor

Processor speed 3.6 GHz, maximum depending on processor

Processor cache 12 – 60 MB L3, depending on processor

Server Memory of HPE ProLiant DL360 Gen10 Plus server

Memory type HPE DDR4 Smart Memory

Maximum memory 6.0 TB per socket, when populated with 256 GB DDR4 and 512 GB Persistent Memory

Memory slots 16 DIMM slots per socket

Memory protection features HPE Fast Fault Tolerant Memory
Advanced ECC Memory
Online Spare Memory
Mirrored Memory

NVDIMM type Optional: Intel® Optane™ Persistent Memory for HPE

NVDIMM capacity Optional: 128 to 512 GB

Server Accelerator

Accelerators Optional

Server Expansions

Expansion slots Maximum 3 PCIe Gen4, for detail descriptions please see QuickSpecs

Server Form Factor

Form factor1U Rack

Server Controllers

Network controller Wide range of speeds, cabling, chipsets and form factors. Please see QuickSpecs for network card choices

Storage controller Included – Embedded SATA controller (AHCI or SR100i modes)
Optional – Variety of protocols -including NVMe-, port count, array utilities, and form factors. Please see QuickSpecs for storage controllers selection

Server Drives

Drive supported Up to 4 LFF SAS/SATA HDDs or SSDs
Up to 10 SFF SAS/SATA HDDs or SATA/SAS/NVMe U.2 or U.3 SDDs, depending on model

Optical drive type Optional DVD via Universal Media Bay or USB connectivity

Management Software

Infrastructure management Included – HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download)
Optional – HPE iLO Advanced, and HPE OneView Advanced

Security

Security UEFI Secure Boot and Secure Start support
Intel® Software Guard Extensions (SGX) support
Immutable Silicon Root of Trust
Optional Trusted Supply Chain, iLO Security modes, TPM, Chassis Intrusion detection and Bezel Locking kits

Warranty of HPE ProLiant DL360 Gen10 Plus server

Warranty3/3/3: Server Warranty includes three years of parts, three years of labor, and three years of onsite support coverage. Additional information regarding worldwide limited warranty and technical support is available at: https://h20564.www2.hpe.com/hpsc/wc/public/home. Additional HPE support and service coverage, to supplement the product warranty, is available. For more information, visit https://www.hpe.com/support

Weights and Dimensions

Weight SFF: 13.04 kg to 16.27 kg
LFF: 13.77 kg to 16.78 kg
SFF: 28.74 lb to 35.86 lb
LFF: 30.36 lb to 37.00 lb

Dimensions SFF: 4.29 x 43.46 x 76.96 cm
LFF: 4.29 x 43.46 x 80.01 cm
SFF: 1.69 x 17.11 x 30.30 in
LFF: 1.69 x 17.11 x 31.50 in
