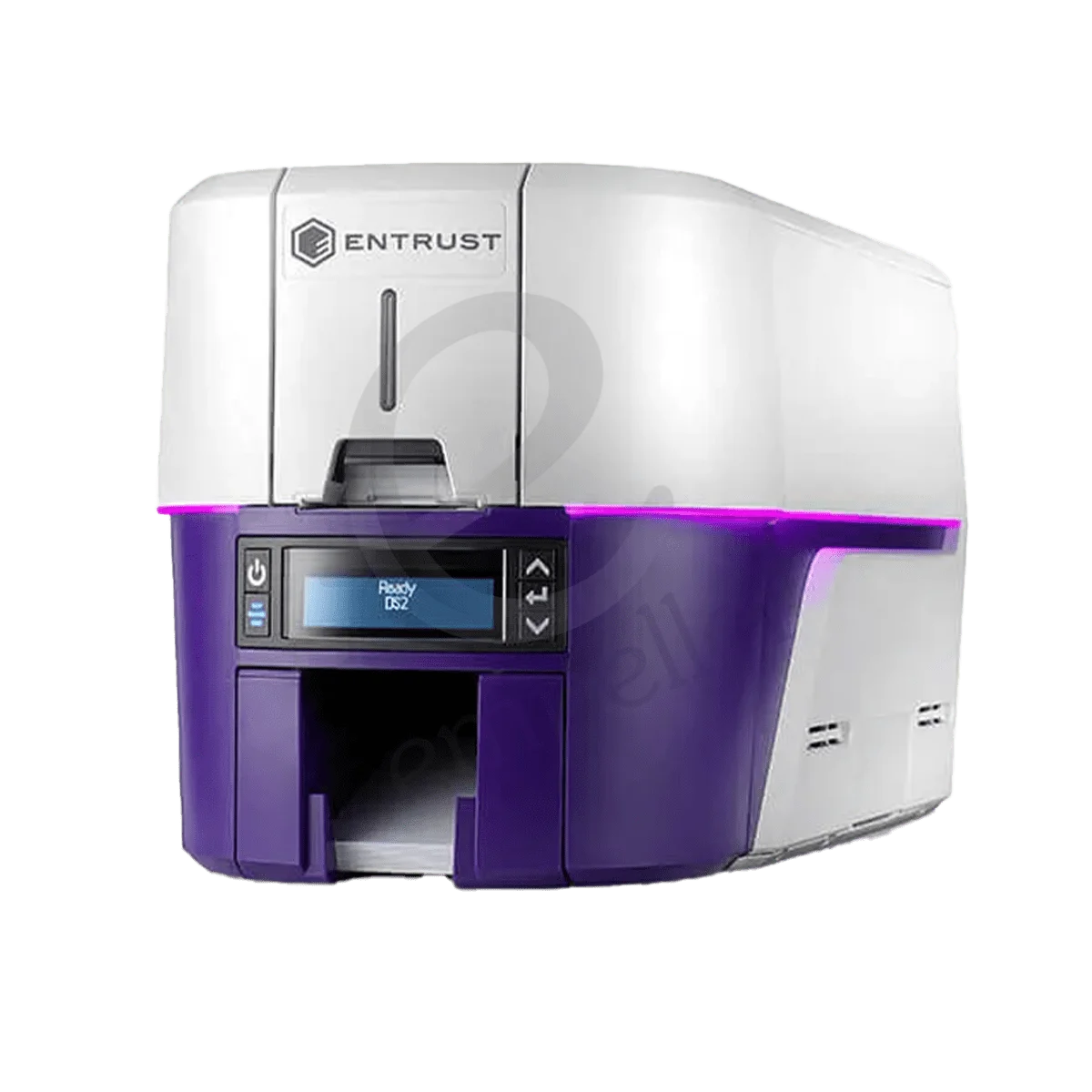

Entrust Sigma DS2 Printer

Print Technology

• Dye-sublimation / resin thermal transfer

Print Capabilities

• Single or dual-sided

Print Resolution

• 300 dots per inch (dpi) (300 X 600, 300 X 1200)

Monochrome printing

• Up to 880 single-sided cards per hour

Print Speed

• Single-sided color ribbon – up to 225 cards per hour (cph)
• Double-sided color ribbon – up to 140 cards per hour (cph)

Card Capacity

• Input hopper – up to 125 cards
• Output hopper – up to 25 cards (up to 100 optional)
• Reject hopper – up to 10 cards

Card Sizes

• Card input size:
• Thickness – 0.010 inches to 0.040 inches
  • (0.25mm – 1.016mm)
• Dimension – ID-1, CR-79, CR-80

Operating Environment

• Temperature: 60°F to 95°F (15°C to 35°C)
• Humidity: 20-80 % RH – non condensing

Physical Dimensions

• L 17.4 in x W 8.9 in x H 9 in / 44.2 cm x 22.6 cm x 22.9 cm

Weight

• 12.1 lbs (5.49 kg); with options will vary

Connectivity

• USB & Ethernet

Warranties

• 36 Months

Web browser support for Instant ID as a Service

• Chrome – Preferred
• Edge/Internet Explorer
• Safari

Operating system support for printer driver

• Windows 11
• Windows 10 versions (32- and 64-bit)
• Windows Server 2019
• Windows Server 2022
