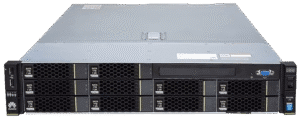

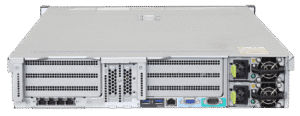

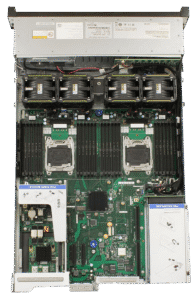

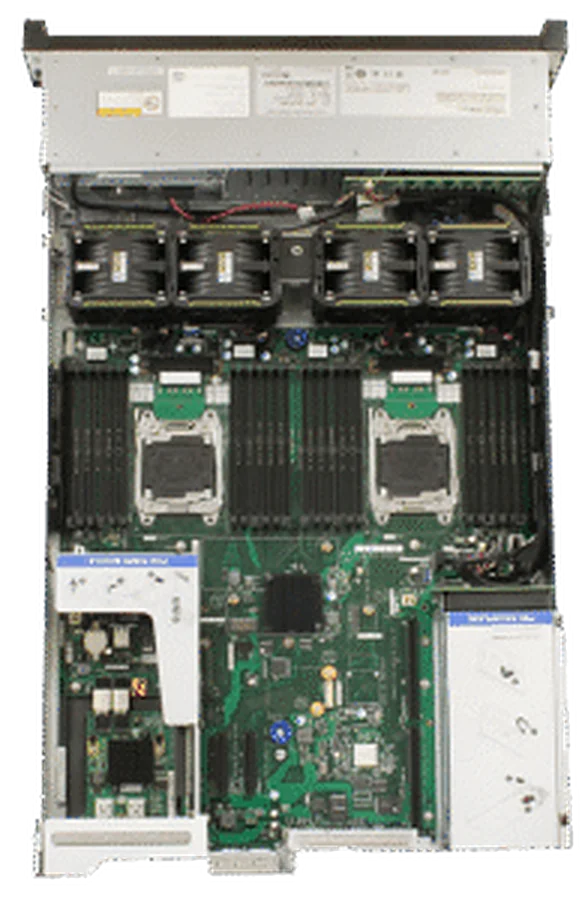

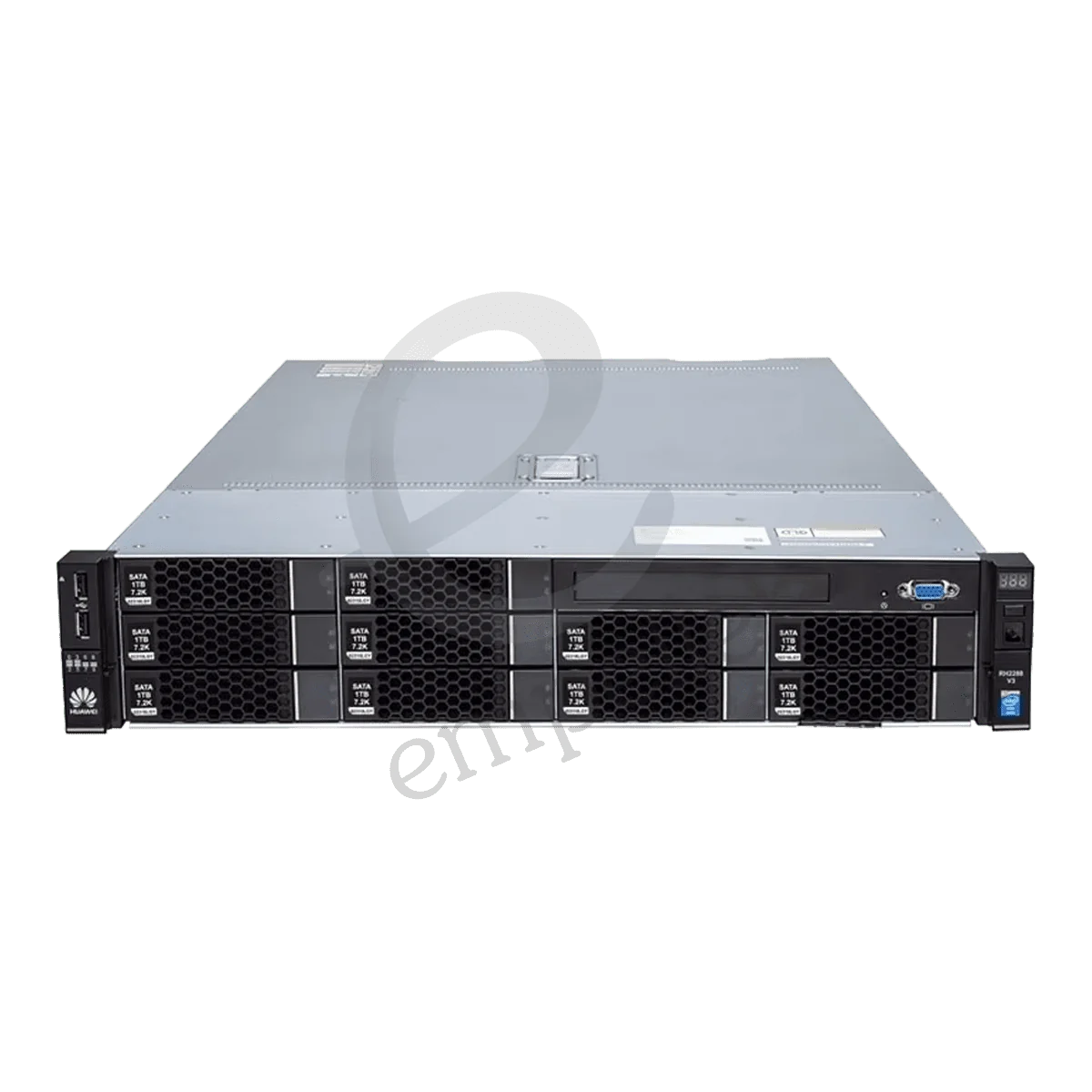

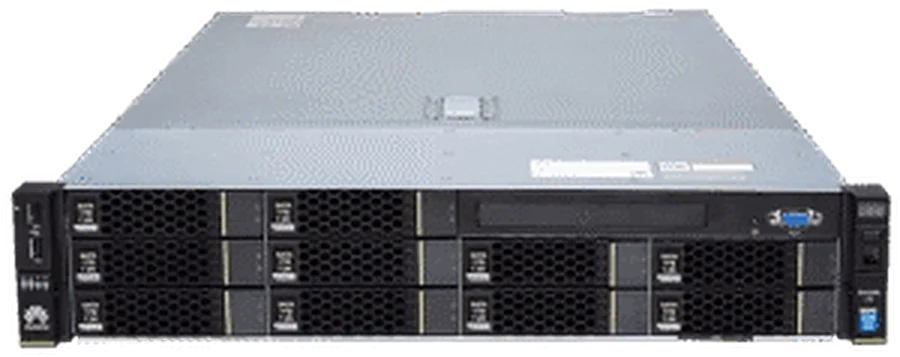

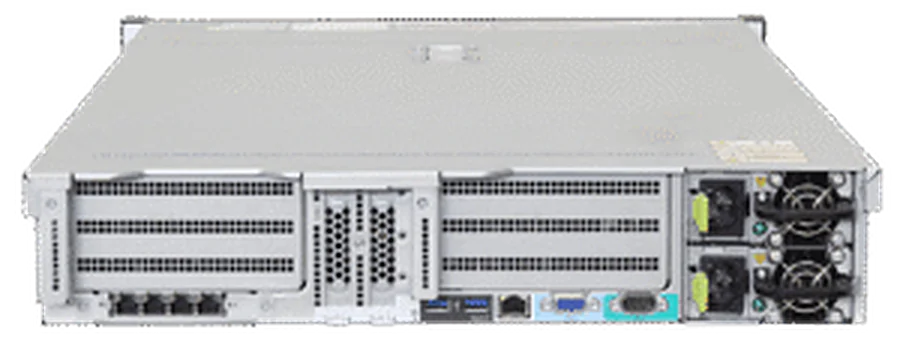

Huawei RH2288H V3 Xeon Rack Server

Why Choose Empeller Systems for the Huawei FusionServer RH2288H V3 Rack Server?

Empeller Systems is a leading IT solutions provider in the UAE, trusted by businesses for delivering enterprise-grade hardware and cutting-edge technologies. As an experienced Huawei server supplier in Dubai, we offer genuine, high-performance Huawei rack servers built to support critical workloads and dynamic business demands.

The Huawei FusionServer RH2288H V3 Rack Server is a powerful, scalable 2U server ideal for businesses seeking to maximize performance, storage flexibility, and reliability. Whether you're managing cloud applications, virtualization, or high-performance computing, the RH2288H V3 is engineered for success.

With Empeller Systems, you benefit from:

• Competitive pricing on Huawei FusionServer models

• Tailor-made configurations to suit your infrastructure

• Expert consultation and deployment guidance

• Responsive after-sales support for long-term peace of mind

When you partner with Empeller Systems, you're not just buying a server"”you're investing in a robust IT foundation that enhances productivity, ensures business continuity, and scales with your growth.

Huawei RH2288H v3 Xeon Rack Server delivers high-performance, large storage capacity and scalability in 2U space. This server is ideal for Internet, big data, cloud computing, high-performance computing, telecom service and mission-critical applications. Huawei RH2288H V3 Xeon Rack Server supports two Intel Xeon E5-2600 V3 series processors, 24 DDR4 DIMMS, 9 PCIe slots and optional Huawei high-performance PCIe SSDs and dual-slot GPUs. With the Industry-leading RAID technologies and flexible storage expansion, Huawei RH2288H V3 Xeon Rack Server can supports from 8 to 28 hard disks and employs the latest 12Gbits/s SAS technology to support massive data transmission. This RH2288H V3 Rack Server offers 4 configurations, including 8-disk configuration, 10-disk configuration, 12-disk configuration and 25-disk configuration.

Key Features of the Huawei FusionServer RH2288H V3 Rack Server

High Performance & Scalability

The Huawei RH2288H V3 Xeon Rack Server is equipped with dual Intel® Xeon® E5-2600 v3/v4 processors, offering powerful multi-core performance for compute-intensive applications. It supports up to 1.5TB of DDR4 memory, making it ideal for demanding enterprise workloads.

Versatile Storage Options

This 2U rack server supports multiple storage combinations, including up to 12 x 3.5" or 2.5" SAS/SATA/NVMe drives, with RAID support and expandability through Huawei PCIe SSD cards"”giving your business the flexibility to scale storage with evolving data needs.

Virtualization-Ready

Optimized for virtualization, the RH2288H V3 delivers high VM density, fast I/O, and robust system responsiveness, making it an excellent fit for private cloud deployments, VDI, and containerized environments.

Energy Efficiency

Huawei's dynamic energy management technologies and smart fan controls help minimize power consumption while maintaining thermal stability, resulting in lower operating costs and a greener data center footprint.

Intelligent Management

With Huawei's FusionDirector, administrators gain access to intelligent monitoring, automated provisioning, and remote management capabilities, simplifying server lifecycle management and reducing maintenance overhead.

Enterprise-Grade Security

The Huawei RH2288H V3 Xeon Rack ServerRH2288H V3 features secure boot, TPM support, and BIOS-level protections, ensuring your infrastructure is safe from unauthorized access and firmware-level threats.

Specifications of the Huawei FusionServer RH2288H V3 Rack Server

Product	Huawei RH2288H V3 Xeon Rack Server
Processors	Intel® Xeon® E5-2600 v3/v4 series processors
Memory	24 DDR4 RDIMMs/LRDIMMs
Internal Storage	Hard disk configurations: · 8 x 2.5-inch front SAS/SATA HDDs or SSDs · 10 x 3.5-inch front SATA HDDs · 12 x 3.5-inch front SAS/SATA HDDs (4 NVMe SSDs supported by the NVMe model) and 2 rear hard disk modules, each module providing 2 x 2.5-inch SAS/SATA HDDs or SSDs, or 2 x 3.5-inch SAS/SATA HDDs · 25 x 2.5-inch front SAS/SATA HDDs or SSDs and 2 or 3 x 2.5-inch rear SAS/SATA HDDs or SSDs Built-in flash memory: · 2 mini-SSD cards (SATADOMs) · 2 SD cards
RAID	· RAID 0, 1, 10, 5, 50, 6, or 60 · Configured with a supercapacitor for power-off protection for the cache (optional) · RAID state transition, configuration memory, self-diagnosis, and web-based remote configuration
LOM Network Ports	2 GE or 4 GE ports, or 2 x 10 GE ports, or 2 x 56 Gbit/s FDR InfiniBand ports
PCIe Expansion	Up to 9 PCIe 3.0 slots
Fan Modules	Hot-swappable fan modules in N+1 redundancy mode
Power Supply Units	2 hot-swappable PSUs in 1+1 redundancy mode
Management	· Uses the Huawei Hi1710 management chip and independent ports · Supports standard management interfaces, such as SNMP and IPMI; provides GUI, remote KVM, virtual media, SOL, Predictive Failure Analysis (PFA), intelligent power supply, remote control, and hardware monitoring Incorporates a touchscreen LCD panel for fault diagnosis · Supports Huawei eSight management software and integration with third-party management systems, such as VMware vCenter, Microsoft System Center, and Nagios
Operating Temperature	5°C to 45°C (41°F to 113°F), ASHRAE Class A3 and A4 compliant
Dimensions (W x D x H)	RH2288H V3 with 3.5-inch hard disks: 447 mm x 748 mm x 86.1 mm RH2288H V3 with 2.5-inch hard disks: 447 mm x 708 mm x 86.1 mm

Why Choose the Huawei RH2288H V3 Xeon Rack Server?

The Huawei RH2288H V3 Xeon Rack Server is built for versatility, efficiency, and enterprise reliability. With support for powerful dual-CPU configurations, large memory capacities, and hybrid storage options, it's designed to handle a wide array of workloads"”from big data analytics and virtualization to database management and cloud hosting.

Its compact 2U form factor allows for high-density deployment in data centers, while tool-free maintenance and modular components simplify upgrades and servicing. Enhanced thermal design and intelligent power features ensure consistent performance even in 24/7 mission-critical environments.

Whether you're upgrading existing infrastructure or building a high-performance server farm, the RH2288H V3 is a cost-effective, scalable, and dependable choice for modern businesses.
