Choosing a RAID level is one of the first decisions you make on a Dell PowerEdge server, and one of the hardest to undo later. The wrong level can cost you usable capacity, write speed or, after a drive failure, your data. This guide explains RAID 1, RAID 5, RAID 6 and RAID 10, shows which workloads suit each, and covers how your Dell PERC controller shapes the answer. Still choosing hardware? Browse our Dell PowerEdge servers in the UAE.

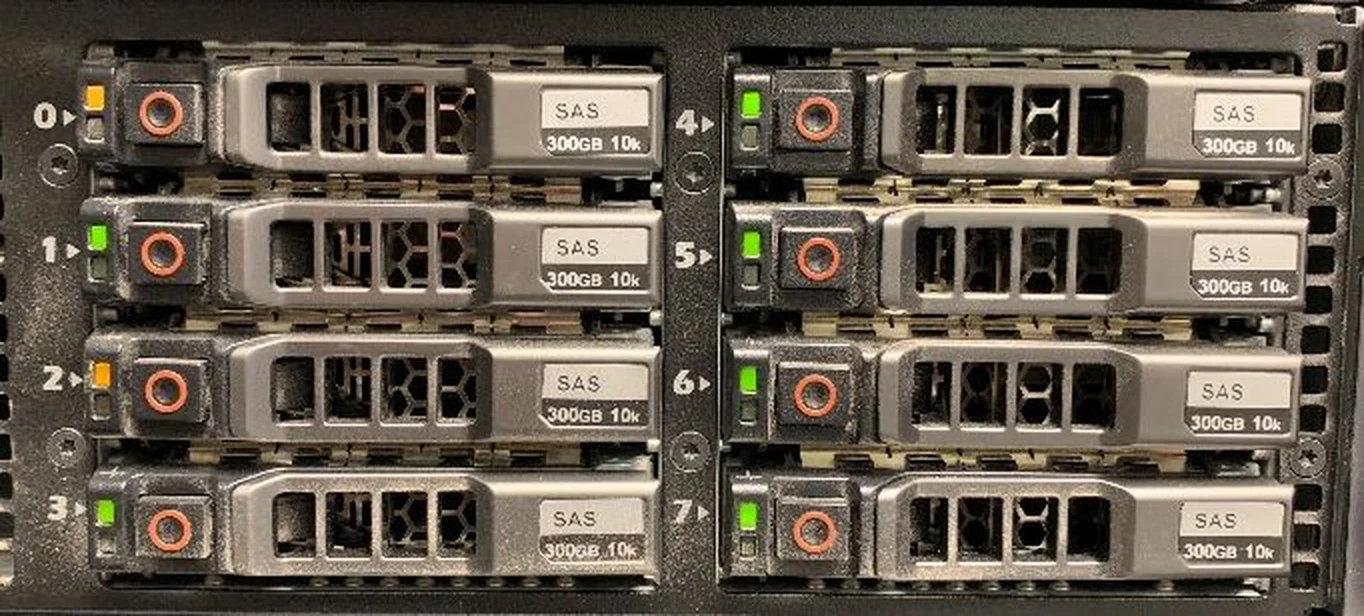

What Is RAID in a Dell PowerEdge Server?
RAID (Redundant Array of Independent Disks) combines several physical drives into one logical volume. Businesses use it for three reasons: tolerance of drive failures, better storage performance, and higher availability, because the server keeps running while a failed drive is replaced.
On a PowerEdge server, the Dell PowerEdge RAID Controller (PERC) builds and manages the arrays. You group drives into a virtual disk, choose a RAID level, and the operating system sees a single disk. Dell’s PERC controller overview lists the controller families it offers.
One rule before the details: RAID is not a backup. It protects against a failed drive, not accidental deletion, ransomware, corruption or a fire. Pair every array with tested backups. See our backup software range if you need a starting point.
Understanding RAID 1, RAID 5, RAID 6 and RAID 10
Each level trades capacity, speed and protection differently. Capacity figures below assume equal-sized drives.
RAID 1 – Best for Simple Data Protection
RAID 1 writes every block to two drives. If one fails, the server carries on from the other, and the replacement is simply copied from the survivor.
- Minimum drives: 2
- Tolerates: one drive failure in a two-drive mirror
- Usable capacity: about 50%
- Best for: operating system volumes and smaller business servers
Example: two 960GB SSDs in RAID 1 give 960GB usable, a sensible home for the OS or hypervisor, kept separate from your data array.
RAID 5 – Balance Between Storage Capacity and Protection

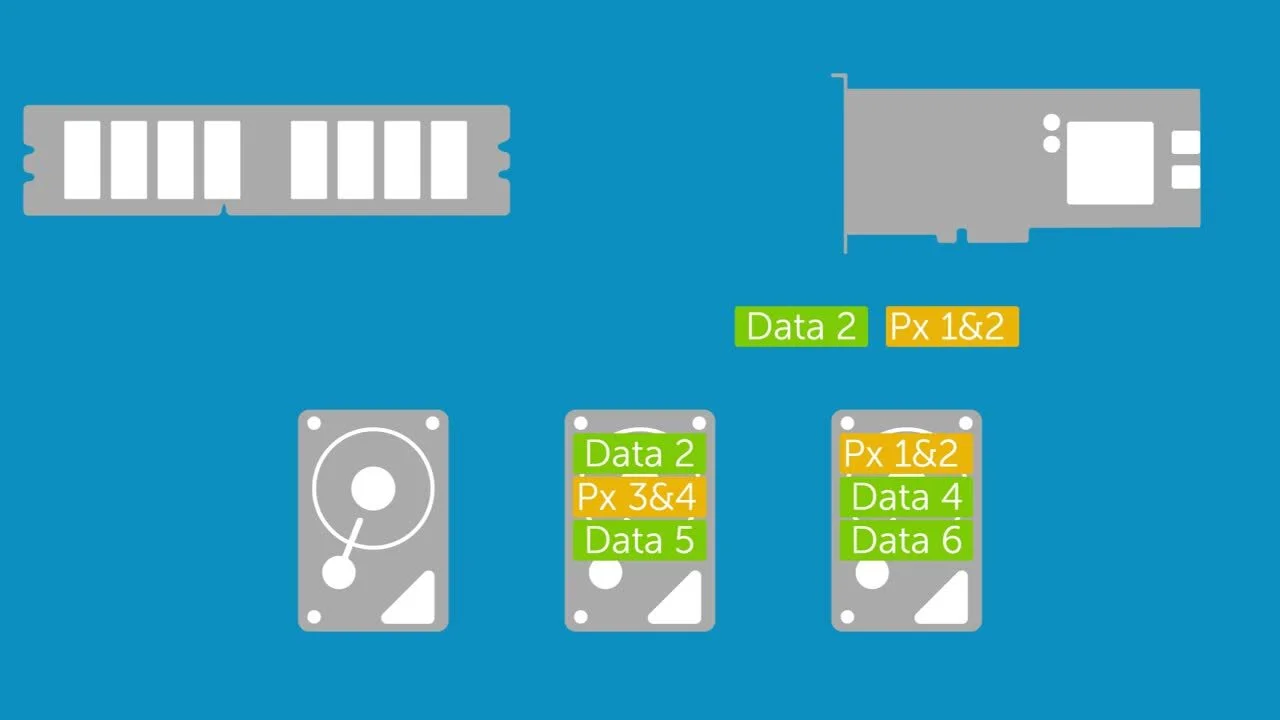

RAID 5 spreads data and parity across all drives, so any one drive can fail without data loss. It uses capacity more efficiently than RAID 1 once you have more than two drives.
- Minimum drives: 3
- Tolerates: one drive failure
- Usable capacity: (N−1)/N, so four 4TB drives give about 12TB
- Best for: selected general-purpose workloads where its limits are acceptable
The limits matter. Every write also updates parity, which adds write overhead. After a failure, the controller must read every remaining drive to rebuild, and with large hard drives that can take many hours or longer under load. During that window the array has no redundancy, and a second failure or unreadable sector can lose the volume. RAID 5 is easier to justify on smaller drives or SSDs, with a hot spare and verified backups.
RAID 6 – Better Protection Against Drive Failures
RAID 6 works like RAID 5 but stores two sets of parity, so the array survives two simultaneous drive failures, including one that happens during a rebuild.
- Minimum drives: 4
- Tolerates: two drive failures
- Usable capacity: (N−2)/N, so eight 8TB drives give about 48TB
- Best for: larger arrays, file servers, backup repositories and archives where availability comes first
The price is two drives’ worth of capacity and slower writes than RAID 5.
RAID 10 – Strong Performance and Fault Tolerance
RAID 10 stripes data across mirrored pairs. It handles random reads and writes well and rebuilds quickly, because a failed drive is rebuilt by copying its mirror partner rather than recalculating parity.
- Minimum drives: 4
- Usable capacity: typically 50%, so four 1.92TB SSDs give 3.84TB
- Tolerates: several failures, as long as no mirrored pair loses both drives
- Best for: databases, virtualization and write-intensive applications
That last point is the catch: two failures can be harmless or fatal depending on which drives they hit.
RAID 1 vs RAID 5 vs RAID 6 vs RAID 10 – Quick Comparison
| Feature | RAID 1 | RAID 5 | RAID 6 | RAID 10 |
|---|---|---|---|---|
| Minimum drives | 2 | 3 | 4 | 4 |
| Usable capacity* | 50% | (N−1)/N | (N−2)/N | 50% |
| Drive failure tolerance | 1 in a two-drive mirror | 1 | 2 | Depends on which pairs fail |
| Write performance | Good | Parity overhead | Higher parity overhead | Very good |
| Typical use | OS, small servers | General storage | Larger storage arrays | Databases, VMs |
*Assumes equal-capacity drives and conventional RAID layouts. Actual performance and usable capacity depend on the controller, drives and configuration.
Which RAID Level Should You Choose for Your Dell PowerEdge Server?
Start from the workload, then check drive count and budget. Treat the table as a starting point, not a universal rule: your drive type, drive sizes and controller can change the answer.
| Business requirement | RAID to consider | Why |
|---|---|---|
| Small office server with two drives | RAID 1 | Simple mirrored storage |
| General-purpose file storage | RAID 5 or RAID 6 | Depends on drive count, workload and fault-tolerance needs |
| Larger HDD storage array | RAID 6 | Can survive two drive failures |
| Database server | RAID 10 | Strong random-write performance |
| Multiple virtual machines | RAID 10 | Good fit for demanding mixed I/O |
| Dedicated operating system drives | RAID 1 | Simple redundancy |
Many servers use two levels at once: a RAID 1 pair for the OS, and a RAID 10 or RAID 6 volume for data. Sizing a new build? Compare our Dell tower and rack servers, or contact our team with your workload and we will suggest a drive layout.

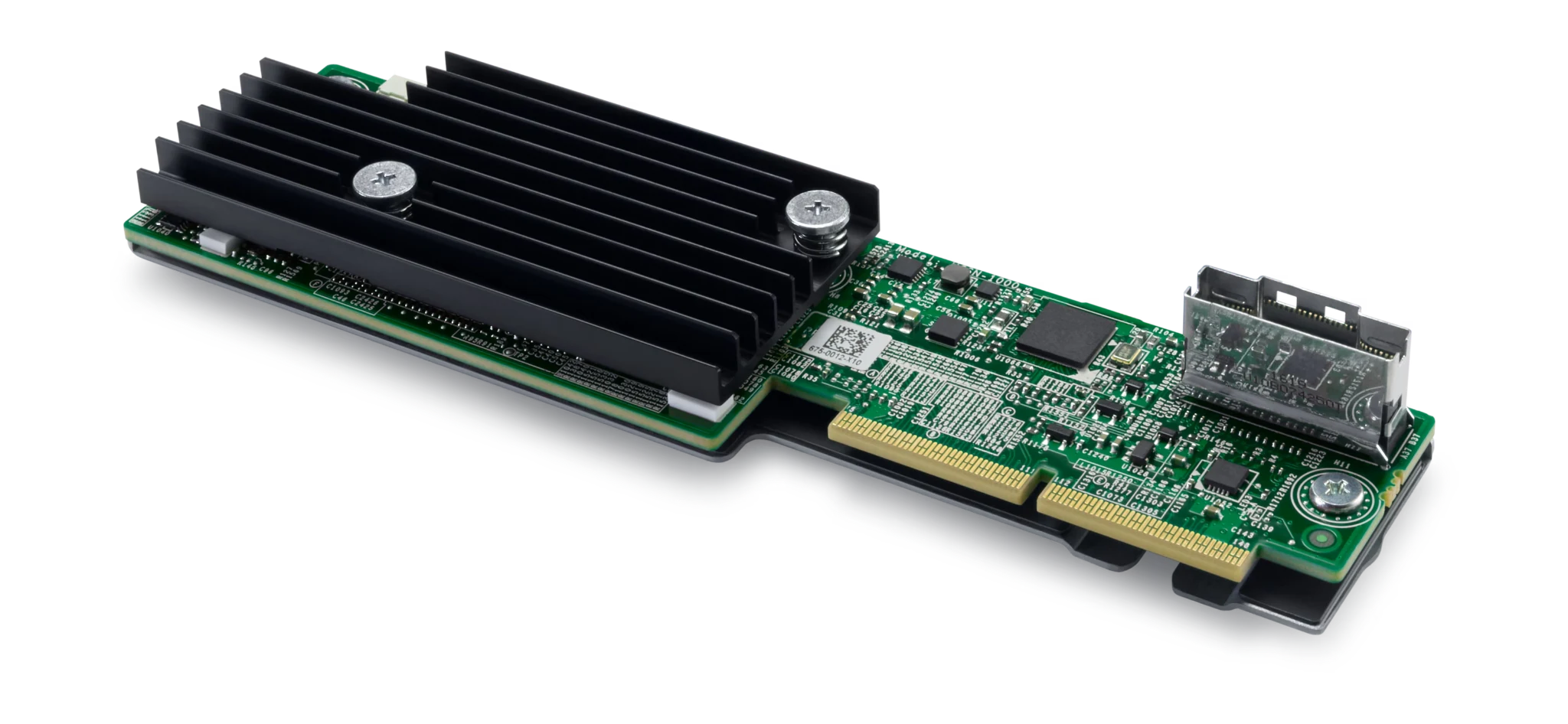

How Dell PERC Controllers Affect RAID Configuration
A PERC controller does the RAID work: it builds virtual disks, calculates parity, manages cache and handles drive failures and rebuilds. This is hardware RAID. Software RAID, such as the basic chipset-based options on some PowerEdge models, uses the server’s CPU instead and is usually more limited. For production servers, a dedicated PERC card is the usual choice.
Support depends on the exact controller. Not every PowerEdge server or PERC model supports every RAID level. Entry-level controllers may offer fewer levels than higher-end cards. For example, the PERC H730P is a cached controller suited to parity RAID, while the PERC H330 is an entry-level card. Always confirm the level you want in the controller’s specification sheet.
Three controller details affect real-world results:
- Cache. Controllers with non-volatile cache absorb write bursts, which softens the write penalty of RAID 5 and RAID 6. Entry-level cards have little or none.
- Drive support. Some controllers handle SAS and SATA only, others also support NVMe. Mixing drive types in one array is usually restricted.
- Generation. Different PowerEdge generations pair with different PERC models, so a controller from an older server may not fit a newer one.
Before you buy, check the controller, supported RAID levels and drive compatibility for your server model. If you are sourcing drives, our server accessories range can be matched to your configuration.
How to Configure RAID on a Dell PowerEdge Server (Quick Overview)
The exact steps differ between PowerEdge generations and PERC models, so use this as an outline and follow Dell’s model-specific instructions. Creating or changing an array can destroy existing data.
- Confirm drive compatibility and the RAID levels your controller supports.
- Back up any existing data before changing the storage configuration.
- Open the storage configuration interface, such as Lifecycle Controller, iDRAC or the PERC management tools.
- Select the controller and create a virtual disk.
- Choose the RAID level and the drives to include.
- Review the settings and initialize the virtual disk as appropriate.
- Verify array health and set up monitoring and alerts.
For model-specific procedures, search your server’s manuals by Service Tag on Dell Support, and see Dell’s PERC overview for controller details.
Common RAID Mistakes to Avoid
- Choosing RAID 5 without considering rebuild time. On large HDDs, use RAID 6 or RAID 10 instead, or keep a hot spare.
- Treating RAID as a backup. It does not protect against accidental deletion or ransomware. Keep separate, tested backups.
- Mixing drives carelessly. Different sizes, speeds or interfaces can waste capacity or be unsupported.
- Ignoring controller and drive compatibility. Check both against your exact server model.
- Skipping monitoring and restore tests. Set up iDRAC alerts for drive events, and test a restore regularly.
FAQs
Q1Which RAID level is best for Dell PowerEdge servers?
There is no single best level. RAID 1 suits OS drives, RAID 6 suits large capacity arrays, and RAID 10 suits databases and virtual machines. RAID 5 fits a narrower set of workloads. Match the level to your workload, drive type and controller.
Q2Is RAID 5 or RAID 10 better for a Dell server?
RAID 10 is better for write-heavy workloads and recovers faster, but uses half your capacity. RAID 5 gives more usable space, at the cost of parity write overhead and rebuild risk on large drives. For large HDD arrays, RAID 6 is usually the safer parity option.
Q3Can I change the RAID level on a Dell PowerEdge server without losing data?
Sometimes. Many PERC controllers support migrating between certain levels, but supported paths depend on the controller, firmware and drive count. Back up first. If your path is unsupported, you will need to recreate the array and restore the data.
Q4Does Dell PERC support RAID 6?
Many PERC models do, but not all. Entry-level controllers may not. Check the specification sheet for your exact PERC model and server before you buy.
Q5Do I still need backups if my Dell server uses RAID?
Yes. RAID keeps the server running through a drive failure but does not protect against deletion, ransomware, corruption or site loss. Follow a 3-2-1 backup approach with regular restore tests.
