| Image Sensor |
1/1.8"³ Progressive Scan CMOS |
| Max. Resolution |
2688 × 1520 |
| Min. Illumination |
Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Shutter Time |
1/3 s to 1/100,000 s |
| Angle Adjustment |
Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
| Lens |
|
| Focal Length & FOV |
2.8 mm: HFOV 111.9°, VFOV 60.5°, DFOV 133.6° |
|
4 mm: HFOV 95.2°, VFOV 50.6°, DFOV 114.7° |
|
6 mm: HFOV 58.4°, VFOV 31°, DFOV 68.7° |
| Lens Mount |
M16 |
| Iris Type |

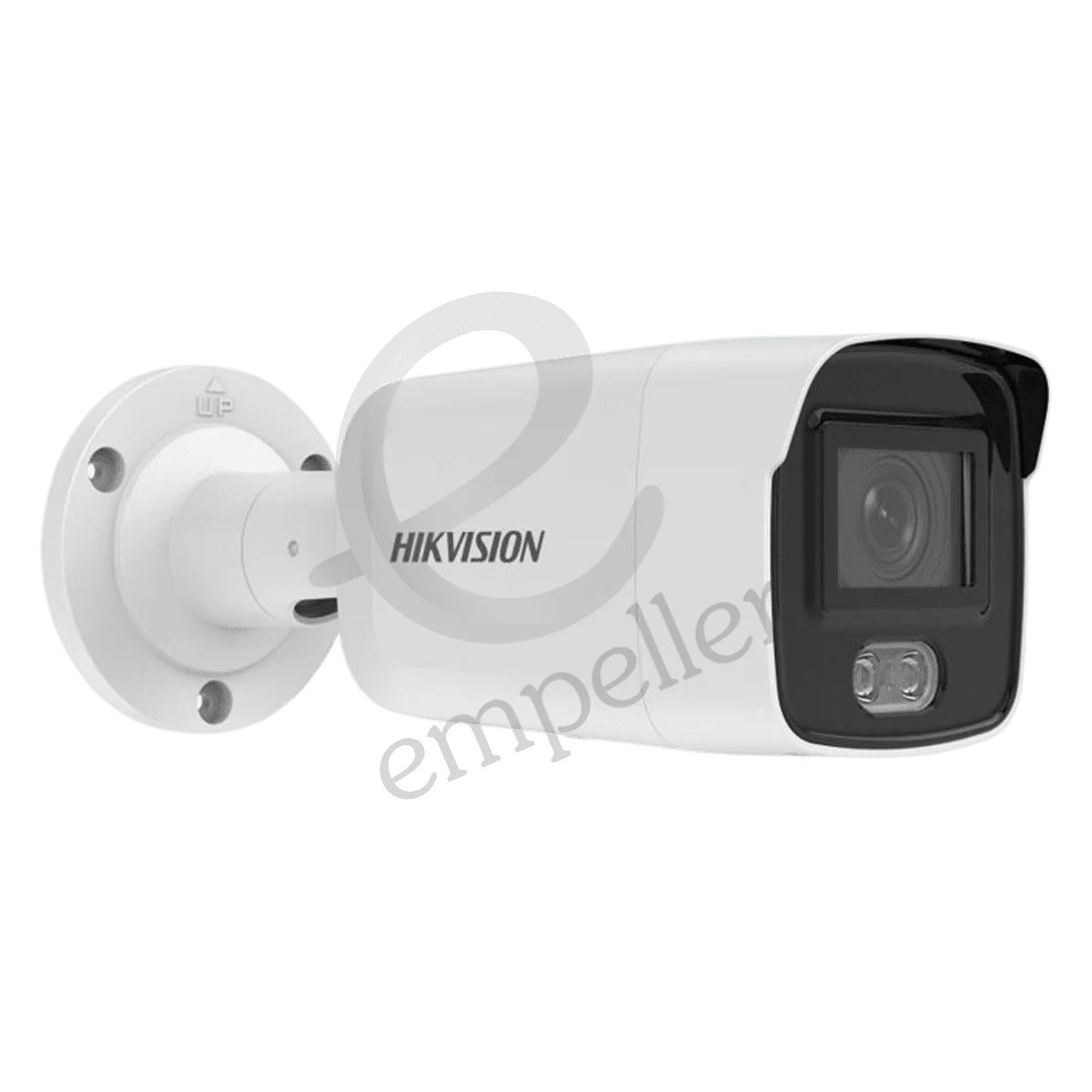

Fixed in ColorVu Mini Bullet Network Camera |
| Aperture |
F1.0 |
| Depth Of Field |
2.8 mm: 3.1 m to ∞ |
|
4 mm: 5.4 m to ∞ |
|
6 mm: 12.1 m to ∞ |
| DORI |
|
| 2.8 mm |
D: 58.2 m, O: 23.1 m, R: 11.6 m, I: 5.8 m |
| 4 mm |
D: 77 m, O: 30.5 m, R: 15.4 m, I: 7.7 m |
| 6 mm |
D: 115.6 m, O: 45.9 m, R: 23.1 m, I: 11.6 m |
| Illuminator |
|
| Supplement Light Type |
White Light |
| Supplement Light Range |
Up to 40 m in ColorVu Mini Bullet Network Camera |
| Smart Supplement Light |
Yes |
| Video |
|
| Main Stream |
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
|
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream |
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) |
|
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Third Stream |
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) |
|
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) |
| Video Compression |
Main stream: H.265/H.264/H.265+/H.264+ |
|
S ub-stream: H.265/H.264/MJPEG |
|
Third stream: H.265/H.264 |
| Video Bit Rate |
32 Kbps to 8 Mbps |
| H.264 Type |
Baseline Profile/Main Profile/High Profile |
| H.265 Type |
Main Profile |
| Bit Rate Control |
CBR/VBR |
| Scalable Video Coding (SVC) |
H.265 and H.264 encoding |
| Region Of Interest (ROI) |
1 fixed region for main stream and sub-stream |
| Audio |
|
| Audio Compression |
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate |
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate |
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Environment Noise Filtering |
Yes |
| Network |
|
| Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets |
| Simultaneous Live View |
Up to 6 channels |
| API |
Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK |
| User/Host |
Up to 32 users. 3 user levels: administrator, operator, and user |
| Security |
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Network Storage |
NAS (NFS, SMB/CIFS), auto network replenishment (ANR), microSD/microSDHC/microSDXC card (512 GB) local storage; Together with high-end Hikvision memory card, memory card encryption and health detection are supported |
| Client |
iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser |
Plug-in required live view: IE 10, IE 11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+; Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Image |
|
| Image Parameters Switch |
Yes |
| Image Settings |
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| Day/Night Switch |
Auto, Schedule |
| Wide Dynamic Range (WDR) |
130 dB |
| SNR |
≥ 52 dB |
| Image Enhancement |
BLC, HLC, 3D DNR |
| Interface |
|
| Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage |
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Built-In Microphone |
Yes |
| Built-In Speaker |
1.2 W, 10 cm: 95 dB |
| Alarm |
|
| Visual alarm |
|
| Reset Key |
Yes |
| Event |
|
| Basic Event |
Motion detection (human and vehicle targets classification), video tampering alarm, exception |
| Smart Event |
Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle)), Scene change detection |
| Linkage |
Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email, strobe light, audible warning, trigger alarm output |
| Deep Learning Function |
Face Capture |
| General |
|
| Power |
12 VDC, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug; PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.15 A, max. 7.5 W |
| Dimension |
Ø74.4 mm × 179.2 mm (Ø2.9"³ × 7.1"³) |
| Package Dimension |
234 mm × 120 mm × 117 mm (9.2"³ × 4.7"³ × 4.6"³) |
| Weight |
Approx. 510 g (1.1 lb.) |
| With Package Weight |
Approx. 760 g (1.7 lb.) |
| Storage Conditions |
"“ 30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup And Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language |
33 languages |
| General Function |
Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter |
| Approval |
|
| EMC |
FCC SDoC: 47 CFR Part 15, Subpart B; CE-EMC: EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; RCM: AS/NZS CISPR 32: 2015; IC VoC: ICES-003: Issue 6, 2016; KC: KN 32: 2015, KN 35: 2015 |
| Safety |
UL: UL 60950-1; CB: IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014; CE-LVD: EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014; LOA: IEC/EN 60950-1 |
| Environment |
CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006 |
| Protection |
IP67: IEC 60529-2013 |
