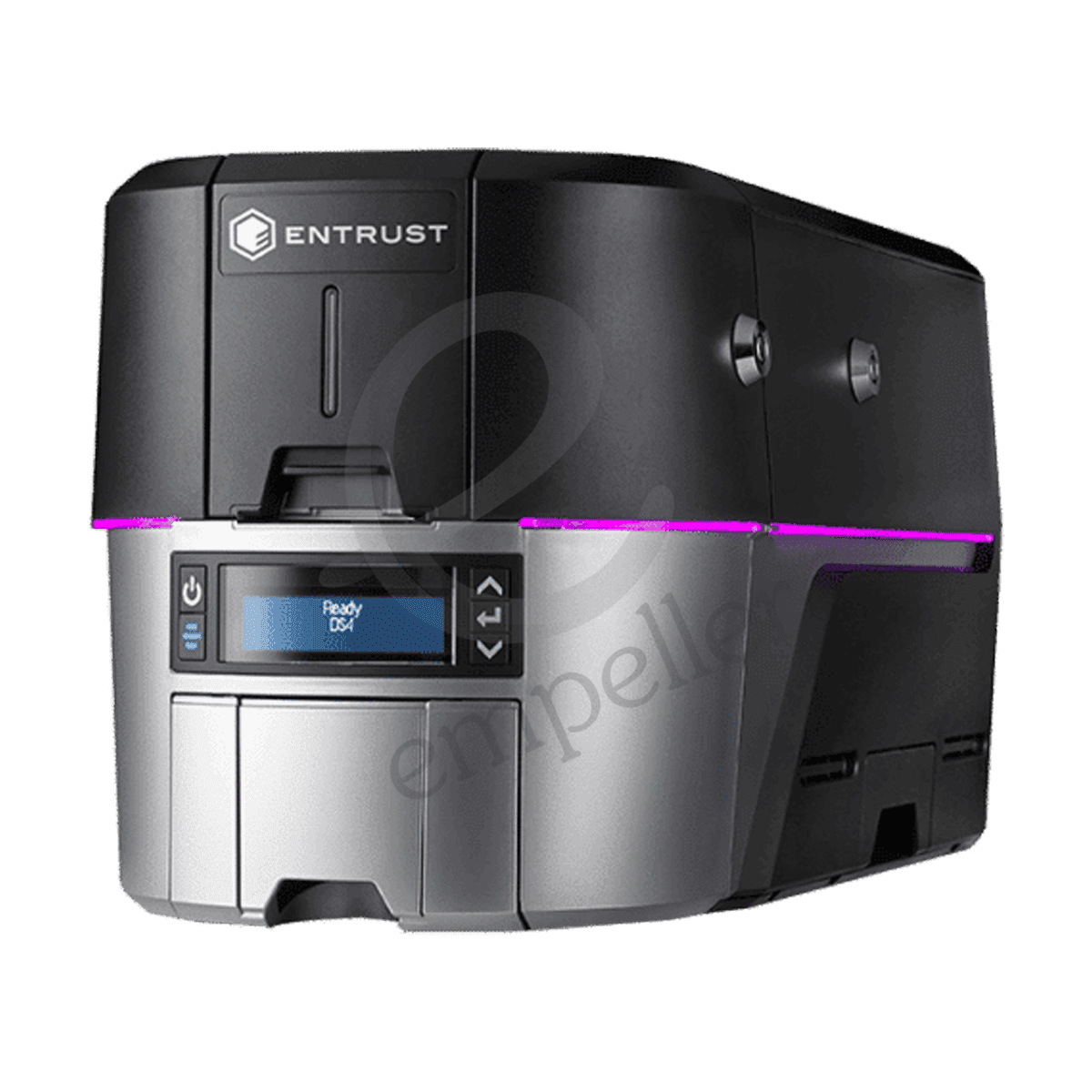

Entrust Sigma DS4 Printer

Entrust Sigma DS4 Printer

Speed - Entrust Sigma DS4 Printer

• Full-color Printing
• Up to 250 cards per hour, single-sided (YMCKT*)
• Up to 180 cards per hour, two-sided (YMCKT-KT*)
• Monochrome Printing
• Up to 500 cards per hour, two-sided (black HQ*)

Encoding

• Magnetic stripe encoding
• ISO 7811, three track high- and low-coercivity

Print Technology

• Dye-sublimation/Resin thermal transfer

Capacity

• Automatic card feed with 125-card input hopper based on 0.030 in. card thickness
• 25-card output standard
• Separate reject location and holding tray, 10-card capacity
• Front exception card slot

Security Features

• Software activated lock to secure card stock, supplies and reject card hopper
• SSL/TLS encryption, supports AES-256
• Bolt-down ready
• Secure cable lock (sold separately)
• Concealed output hopper
• Password protected cabinet
• Non-resettable card counter for auditing

Secure Ribbon Scramble

• Printing with Secure Ribbon Scramble allows users to specify the card fields that are to be securely printed, making defined personal data difficult to read from the used ribbon supply
• Software needed: IFI On-prem 6.10 or higher and IFIaaS 8.3 or higher
• Available for UV monochrome ribbons (excluding cassette types) and standard black and white non-UV ribbons
• Only recommended for personalization fields, not recommended for non-personalization information

Display

• Graphical LCD Display
• User interface languages available: English, Spanish, German, Italian and Japanese

Physical Dimensions

• Single hopper system: 17.4 X 8.9 X 9" (44.2 X 22.6 X 22.9 cm)
• Six-compartment multi-hopper system: 23 X 13.4 X 16.2" (58.4 X 34 X 41.1 cm)

Weight

• Single input hopper, encoding, printing: 12.1 lbs (5.49 kg)
• Six-compartment multi-hopper, encoding, printing: 30.9 lbs (14.02 kg)

Card Thickness

• 0.68 mm to 0.84 mm (27 mil to 33 mil)

Connectivity

• Ethernet

Driver Operating

• Supported by Instant Financial Issuance Software 6.7 (On-prem) and 8.2 (as a Service)

System Support

• Windows 10 32 bit "“ professional or enterprise
• Windows 10, version 1909 64-bit "“ home, professional

Warranty

• 36-month warranty

Multi-hopper

• Six-compartment multi-hopper
• Six 125-card hoppers
• 750-card total capacity

Smart Card

• Contact and contactless smart card encoding for ISO 14443 A/B, ISO 15693

Personalization

• MIFARE®, MIFARE® DESFire®
• Single-wire connectivity
• Supports production of EMV® level-1 compliant cards

Print Technology

• One-sided (simplex) and two-sided (duplex), edge-to-edge printing
• Full-color and monochrome printing capability
• Standard mode: 300 x 300 dots per inch, standard text, bar code and graphics printing
• Datacard® TrueMatchâ„¢ printing technology
• Ability to conform to ICC color workflow

Additional Features

• LED Light Bar
• Printhead Protector
• Quick Connect Error Recovery
