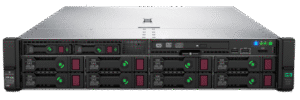

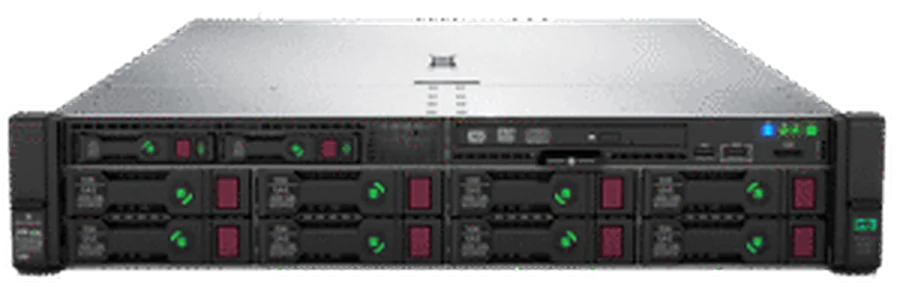

HPE ProLiant DL380 Gen10 Rack Server

Description

The HPE ProLiant DL380 Gen10 826565-B21 Server delivers a recognized solution for enterprises which seek in aspects of security, efficiency, performance and scalability. HPE’s ProLiant DL380 has consistently been at the top of the best seller list – and with good reason, as this is its most capable rack server. Adaptable for diverse workloads and environment, the secure 2U HPE Proliant DL380 Gen10 826565-B21 utilizes Intel Xeon Skylake Processor Scalable Family that brings up to 71% more performance, twice the I/O rate, 50% more bandwidth in 6 channel 2DPC (2 DIMMs per channel) with 2666MT/s DDR4 Memory compare with predecessors. In addition, iLO 5 management controller offers a heap of new features as along with improved server monitoring, and it has a laser-sharp focusing on platform security with silicon fingerprinting (new Silicon Root of Trust technology), encryption and breach detection technology. With new features of reliability, security and improved performance, HPE Proliant DL380 Gen10 2U rack platform is an ideal partner for all kind of business.

HPE ProLiant DL380 Gen10 Rack Server | Intel Xeon Silver 4210R | 32 GB | 800 W | 3 Year | P50751-B21

Processor Support:

• The HPE ProLiant DL380 Gen10 Rack Server, Supports 2nd Generation Intel® Xeon® Scalable processors with up to 28 cores per processor for exceptional performance.
• Dual-socket configuration, supporting up to 2 processors for scalability and workload optimization.
• Features Intel UltraPath Interconnect (UPI) for improved inter-CPU communication and faster data processing.

Memory Capacity:

• Supports up to 3 TB DDR4 SmartMemory across 24 DIMM slots.
• Memory speeds of up to 2933 MT/s, providing high bandwidth and reliability for data-intensive workloads.
• HPE Persistent Memory support, combining the speed of memory with storage persistence for improved application performance.

Storage Flexibility:

• HPE ProLiant DL380 Gen10 Rack Server, Supports up to 12 LFF (Large Form Factor) or 24 SFF (Small Form Factor) hot-plug drives.
• Flexible support for SATA, SAS, and NVMe SSDs or HDDs for diverse storage configurations.
• Up to 20 NVMe drives can be configured for maximum high-speed storage options.

RAID Support:

• Equipped with HPE Smart Array S100i SR Gen10 controller for software RAID 0, 1, and 5.
• Optional advanced hardware RAID controllers like the HPE Smart Array P408i-a/Smart Array E208i-a, supporting RAID levels 0, 1, 5, 6, 10, 50, and 60 for superior data protection.

Networking:

• Comes with 4x1GbE embedded NICs for standard network connectivity.
• Optional HPE FlexibleLOM or PCIe network adapters support 10GbE, 25GbE, and 100GbE for more advanced network requirements.

Expansion Slots:

• Offers up to 6 PCIe Gen3 expansion slots, allowing for additional RAID controllers, GPUs, or network interface cards (NICs).
• HPE ProLiant DL380 G10 Rack Server, Supports a wide range of PCIe cards for flexible expansion options and customization.

Power Supply:

• Configurable with 500W, 800W, 1600W, and 2000W hot-plug, redundant Platinum/Titanium power supplies.
• Features HPE Power Discovery Services to optimize power efficiency and provide real-time power usage insights.

Remote Management:

• Integrated with HPE iLO 5 (Integrated Lights-Out) for advanced server monitoring, management, and troubleshooting.
• iLO offers features like agentless management, remote control, health monitoring, and automatic firmware updates.
• HPE InfoSight integration for AI-driven insights, helping optimize performance and predict potential issues.

Security Features:

• Silicon Root of Trust to protect the system from firmware attacks.
• HPE ProLiant DL380 Gen10 Rack Server, Secure boot, automatic recovery, and chassis intrusion detection for enhanced security.
• Optional Trusted Platform Module (TPM) for hardware-based encryption and data protection.

GPU Support:

• Supports up to 3 double-wide GPUs or 5 single-wide GPUs, making it suitable for workloads like AI, machine learning, deep learning, and virtual desktop infrastructure (VDI).
• Excellent for handling high-performance computing (HPC) and graphically demanding workloads.

Operating System Support:

HPE ProLiant DL380 G10 Rack Server, Compatible with a wide range of operating systems including Microsoft Windows Server, Linux distributions (RHEL, SUSE, Ubuntu), and VMware ESXi.

• Perfect for running traditional workloads, virtualization, or cloud-native applications.

Energy Efficiency and Cooling:

• HPE’s Advanced Thermal Discovery Services for dynamic cooling and energy optimization.
• Redundant fans with advanced cooling mechanisms to handle high-performance workloads efficiently.

Workload Optimization:

• Optimized for a variety of workloads including virtualization, data analytics, cloud computing, HPC, and AI.
• Provides versatile performance for data-intensive applications and enterprise environments.

Compact Design:

• 2U rack form factor, offering a balance between performance, storage capacity, and expandability while saving space.
• Ideal for enterprise data centers looking for a powerful yet compact server solution.

Warranty and Support:

• Comes with a standard 3-year parts, 3-year labor, and 3-year on-site support warranty.
• Optional HPE Pointnext services for tailored support, deployment assistance, and ongoing management.

HPE ProLiant DL380 Gen10 Rack Server

• Processor: HPE ProLiant DL380 G10 Rack Server, Intel® Xeon Silver 4210R (2.4 GHz, up to 3.2 GHz w/Turbo Boost, 13.75 MB cache, 2400MHz, 10Core/20 Threads) 100W
• Memory: 32 GB (1x32GB) RDIMM Dual Rank 2933MT/s. (24 DIMM Slots)
• Internal storage: 8 SFF SAS/SATA HDD Bays
• Internal HDD: No HDD
• Storage controller: HPE Smart Array P408i-a/2GB SR Controller RAID 0/1/1+0/5/5+0/6/10
• Optical Drive: N/A
• Graphic card: Choice of up to 2 double wide GPGPU’s, or 3 single wide GPGPU’s
• Network interfaces: HPE Ethernet 1GbE 4 port Network Adapter
• Power supply: (1+0) HPE 800W Flex Slot Platinum hot plug power kit
• Form Factor: 2U Rack (3.44” H x 17.54″ W x 27.5″ L) – 14.76KG
• Warranty: 3 Year
